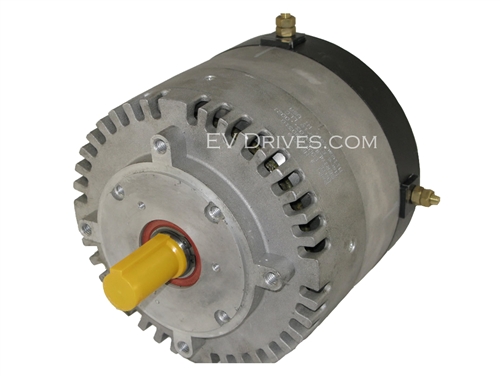

Motenergy ME-0709 (ME1908) Brush-Type Permanent Magnet DC Motor
$738.00
Description
The ME0709 is a Brush-type Permanent Magnet DC motor. Light weight, high efficiency design. Designed for 24-72 VDC battery operated equipment. Capable of 300 amps peak and 125 amps continuous. Totally open, fan cooled motor. Motor weight of 36 pounds. Similar in performance to the Perm-132 and the Lemco LEM-200 motors.
| Power | 8 continuous & 18 Peak Hp |
| Voltage | 24-72 Volts |
| Speed | 3050 rpm at 72V Unloaded |
| Size | 8″ OD, 6.75″ long (w/o shaft) |
| Shaft | 7/8″x 1-5/8″, 3/16″ key Timed for counter-clockwise rotation (can be changed to clockwise) |
| Weight | 36 lbs |
Alternative part number with sproket – ME1908.
Additional information
| Weight | 39 lbs |
|---|
