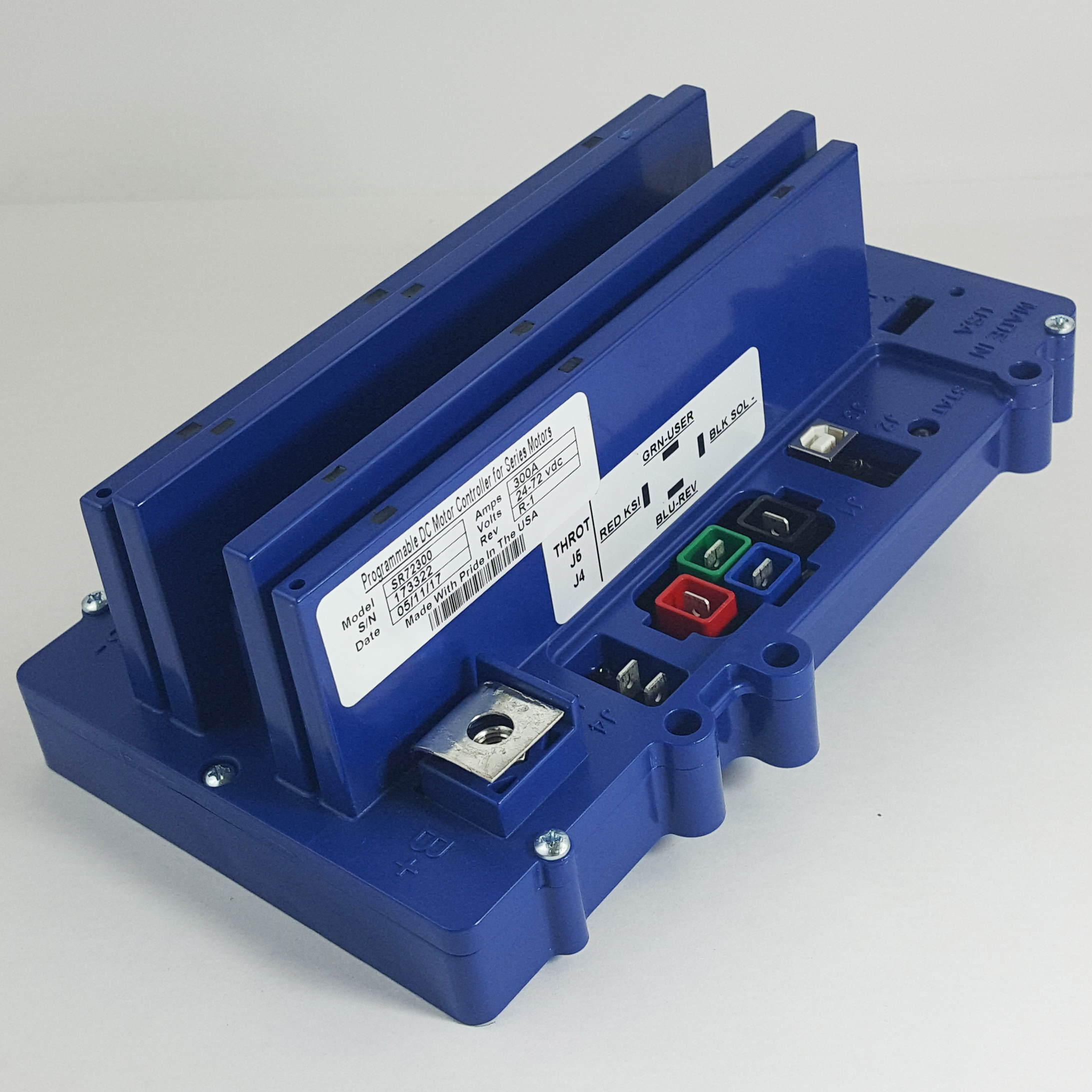

Pre-Installed Alltrax SR72300 Series Motor Controller

Description

Pre-Installed – Alltrax SR-72300 Motor Controller

– Fuse & Mounting Hardware Included
– For Series and Permanent Magnet Motors

Features

• Color coded terminals
• 12-72 Volts
• 300 Amps Peak
• 350 (Peak Amp Mode)
• Standard 4-spade
• Flexible USB programming
• Integrated heatsink mounts on any suitable surface
• Solenoid Control for Main DC Control
• Auto-throttle calibration for smooth operation

Specifications

• DC motor controller for series and permanent magnet motors
• ABS + PC510 flame resistant thermal plastic enclosure
• All copper heat sinks
• Sealed epoxy UL-94-VO / 5VA flame rating (best in industry)
• Adjustable undervoltage cutback 8-58 VDC
• Adjustable overvoltage shutdown 30-90 VDC
• Operating Frequency: 18k Hz
• Voltage drop @ 100amps: <0.18V
• Control voltage KSI keyswitch and reverse: 12-72V Nom, 90 VDC Max
• Powered Up Standby Current <0.02A (20mA)
• Relay solenoid drive output current: 5amp peak, 1.0A Continuous

Throttle Input Options

• ITS (inductive, E-Z-GO)
• 0-1K Yamaha
• Resistive 0-5K ohm (+/-10%) 2-wire and 3-Wire
• Resistive 5K-0 ohm (+/-10%) Club Car
• 0-5Volt
• 6-10.5Volt (Taylor Dunn)

Options

• Cooling fan & encloser (increased performance)
• Programming cable
• Personality switch – 2 modes rocker or dial, to control speed for different users (coming soon)
