Sale!
Open Box, Motenergy ME-0909 Brush-Type Permanent Magnet DC Motor
Original price was: $515.00.$463.50Current price is: $463.50.
Out of stock
Description

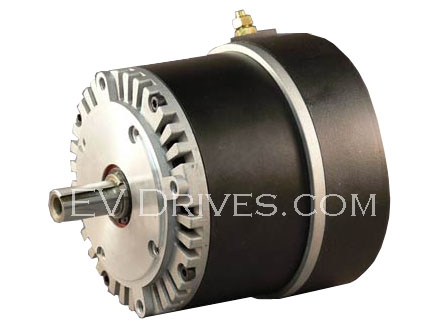

Open Box. This ME0909 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 4.8 KW continuous and 15 KW for 30 seconds. For voltages from 12 to 48 VDC input and 100 amps continuous (300 amps for 30 seconds). Designed for battery operated equipment.
| Power | 4.8 KW continuous 15KW for 30 seconds |
| Voltage | 12 – 48 Volts |
| Speed | 3,984 rpm at 48V Unloaded 83 RPM per Volt |
| Size | 6.88″ OD, 6.29″ long (w/o shaft) |
| Shaft | 7/8″x 1-5/8″, 3/16″ key Timed for counter-clockwise rotation (can be changed to clockwise) |
| Weight | 24.1 Lbs. |
Additional information
| Weight | 26 lbs |
|---|
