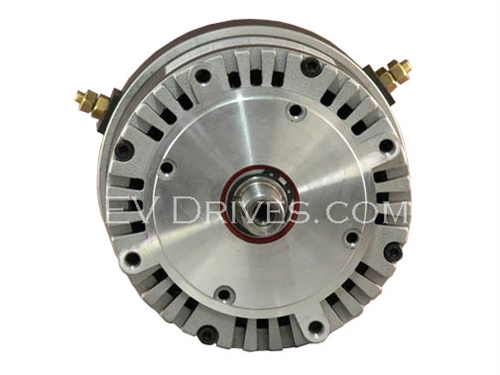

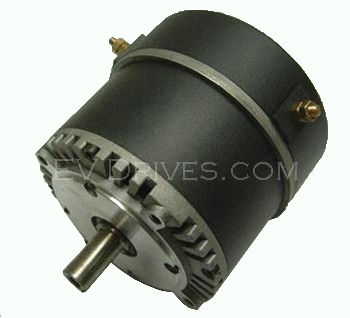

Motenergy ME0909 (ME1906) Brush-Type Permanent Magnet DC Motor
Motenergy ME0909 (ME1906) Brush-Type Permanent Magnet DC Motor - Image 2
Motenergy ME0909 (ME1906) Brush-Type Permanent Magnet DC Motor - Image 3
Motenergy ME0909 (ME1906) Brush-Type Permanent Magnet DC Motor - Image 4

Motenergy ME0909 (ME1906) Brush-Type Permanent Magnet DC Motor

$550.00

SKU: MOT-ME0909 Category: Brand:

Description

This ME0909 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 4.8 KW continuous and 15 KW for 30 seconds. For voltages from 12 to 48 VDC input and 100 amps continuous (300 amps for 30 seconds). Designed for battery operated equipment.

Alos know as ME1906

Power 4.8 KW continuous 15KW for 30 seconds
Voltage 12 – 48 Volts
Speed 3,984 rpm at 48V Unloaded
83 RPM per Volt
Size 6.88″ OD, 6.29″ long (w/o shaft)
Shaft 7/8″x 1-5/8″, 3/16″ key
Timed for counter-clockwise rotation (can be changed to clockwise)
Weight 24.1 Lbs.

Additional information

Weight 26 lbs
