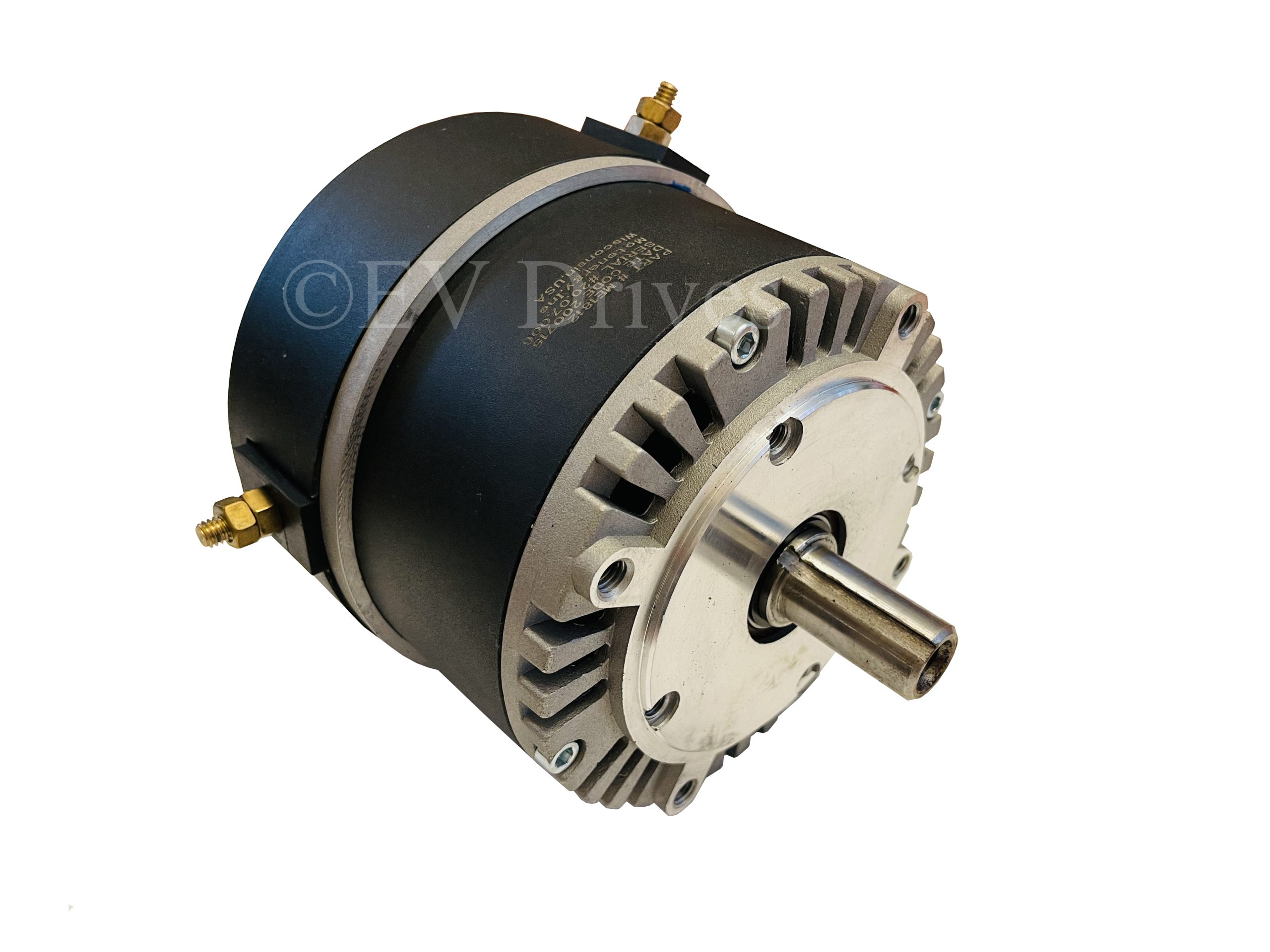

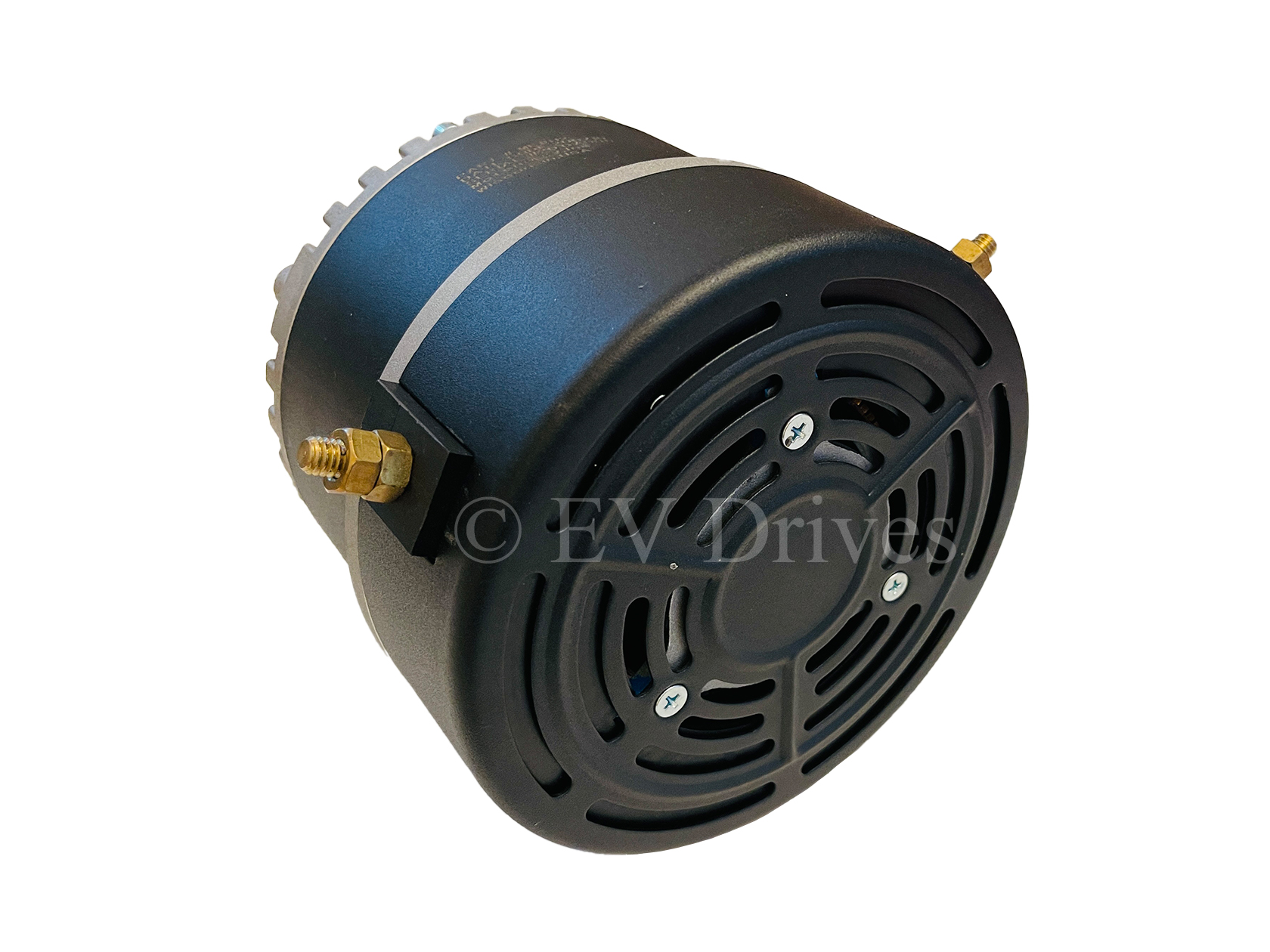

Motenergy ME-1812 Brush-Type Permanent Magnet DC Motor for 12 & 24 Volts

Description

This ME1812 is a Brush-Type, Permanent Magnet DC motor with high efficiency.

• 12 to 24 volt
• 1.1 KW @ 12VDC
• 2.5 KW at 24 volts
• 1,800 rpm at 12V
• 3,600 rpm at 24V
• Weight of 20 Lbs
• Size 6.88″ OD, 5.83″ long (w/o shaft)
• Shaft is 7/8″x 1-5/8″, 3/16″ key
• Timed for counter-clockwise rotation (can be changed to clockwise)
