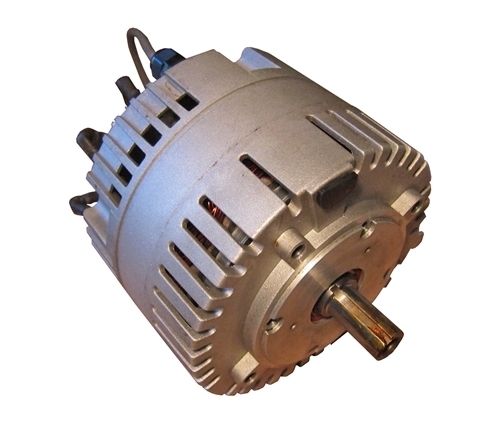

Motenergy ME-0907 in new frame, Brushless DC Permanent Magnet Motor

Description

ME0907 in the new Me1305 frame.

This three-phase motor requires a motor controller (Sevcon Gen4 or Kelly controllers) that we currently do not offer.

Note: This is similar to the ME0907. But it is longer, has a metal fan housing, and a larger bi-directional fan for 300% more air flow. It also has inverter hall signals.

Features include:

• Designed for long life. No brush maintenance. The motor is 90% efficient at voltages between 24 to 72 VDC. Continuous current of 125 amps. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap.
• This is a 8 pole motor (4 pole pairs).
• The Phase to Phase winding resistance is 0.013 Ohms.
• The maximum recommended rotor speed is 5000 RPM.
• Voltages from 0 to 72 VDC input to the control.
• Torque constant of 0.13 Nm per Amp
• The Inductance Phase to Phase is 0.10 Milli-Henry.
• Armature Inertia is 52 Kg Cm Squared.
• Continuous current of 80 Amps AC.
• Peak current of 300 Amps AC for 2 minute.
• Weight of 24 pounds.
• This is an Open Frame, Fan Cooled motor.
• Has internal temperature sensor.
• Timed for counter-clockwise rotation (can be changed to clockwise)
