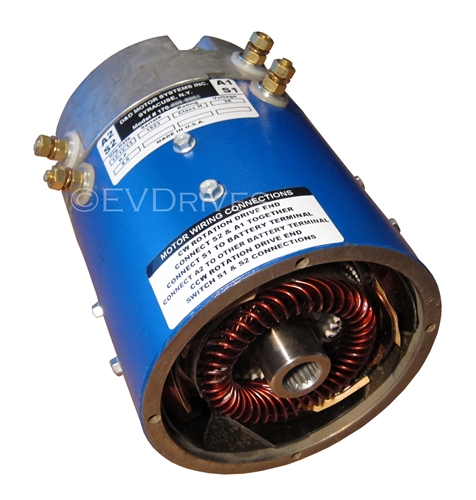

D&D 170-010-0002 Golf Cart Motor, E-Z-GO & Yamaha (Series), Speed & Torque

D&D 170-010-0002 Golf Cart Motor, E-Z-GO & Yamaha (Series), Speed & Torque

$458.00

Out of stock

SKU: MOT-170-010-0002 Category: Brand:

Description

Features include:

  • For EZ-GO & Yamaha Series 1992 & later
  • Series Motor 36 & 48 VDC
  • Speeds up to 17 mph on 48V
  • Torque with Large Tires
  • 8.3 HP Peak @ 3250 rpms on 36 volts
  • 10.5 HP Peak @ 3950 rpms on 48 volts
  • 60-80% increase in torque
  • 19 Tooth Female Spline
  • 10.5″ long
  • 58 lbs
E-Z-Go Recommended Alltrax Controller Speed up to on 36 volts Speed up to on 48 volts Approx % increase in Torque +
Torque & Speed with Stock or Large Tires SR48400 – 400 Amp 14 17 40
Torque & Speed with Stock or Large Tires SR48500 – 500 Amp 14 17 50
Torque & Speed with Stock or Large Tires SR48600 – 650 Amp 14 17 60




Vehicle performance specifications are compared to the standard factory performance. Several factors can effect the performance. Some are battery conditions; tire size, tread type and air pressure and varying environmental conditions. Standard factory speeds normally run between 12 – 14 MPH.

It’s recommended that you upgrade wiring throughout the golf cart to a minimum of 4 AWG and a contactor that is rated for 400 amp continuous.

Alltrax has come out with a new set of field maps for the DCX Controllers to maximize the performance of these motors. If you wish to use your current controller it needs to be updated to this new field map or it could cause failure to both the motor & controller. You are welcome to send your controller to us to be programmed for a fee of $15 to pay for shipping the controller back to you.

* (Reference: D&D Motors Specification)

Best Practice Before Buying: remove your existing motor and determine if it is Regen or Series type, that the shaft spline is 10 tooth or 19, and that your controller is compatible with the new motor.

Additional information

Weight 58 lbs
