Curtis Style PB-8 Throttle – Made in USA

Description

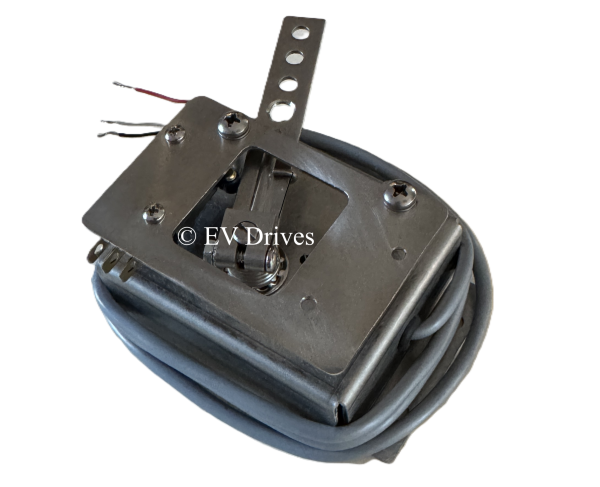

This Curtis style PB-8 has a 3-wire design to accommodate controllers with a 3-wire input, but also can be used on all 2-wire configurations and has the same footprint and mounting pattern as the PB-6. It was designed for cable actuation. The PB-8 is outfitted with a micro switch which may be optionally used for various control inputs.

• Curtis Style PB-8 Throttle – Made in USA
• The PB-8 is an input device between the Throttle pedal and the speed controller.
• Stainless case with a micro switch built in
• The potbox is the throttle in an EV
• The potbox tells the controller how much input needed by the controller
• The potbox’s lever arm is attached to the existing accelerator cable.
• Height: 3.75″, Width: 4″, Depth: 1.875″
• Weight: 10 oz

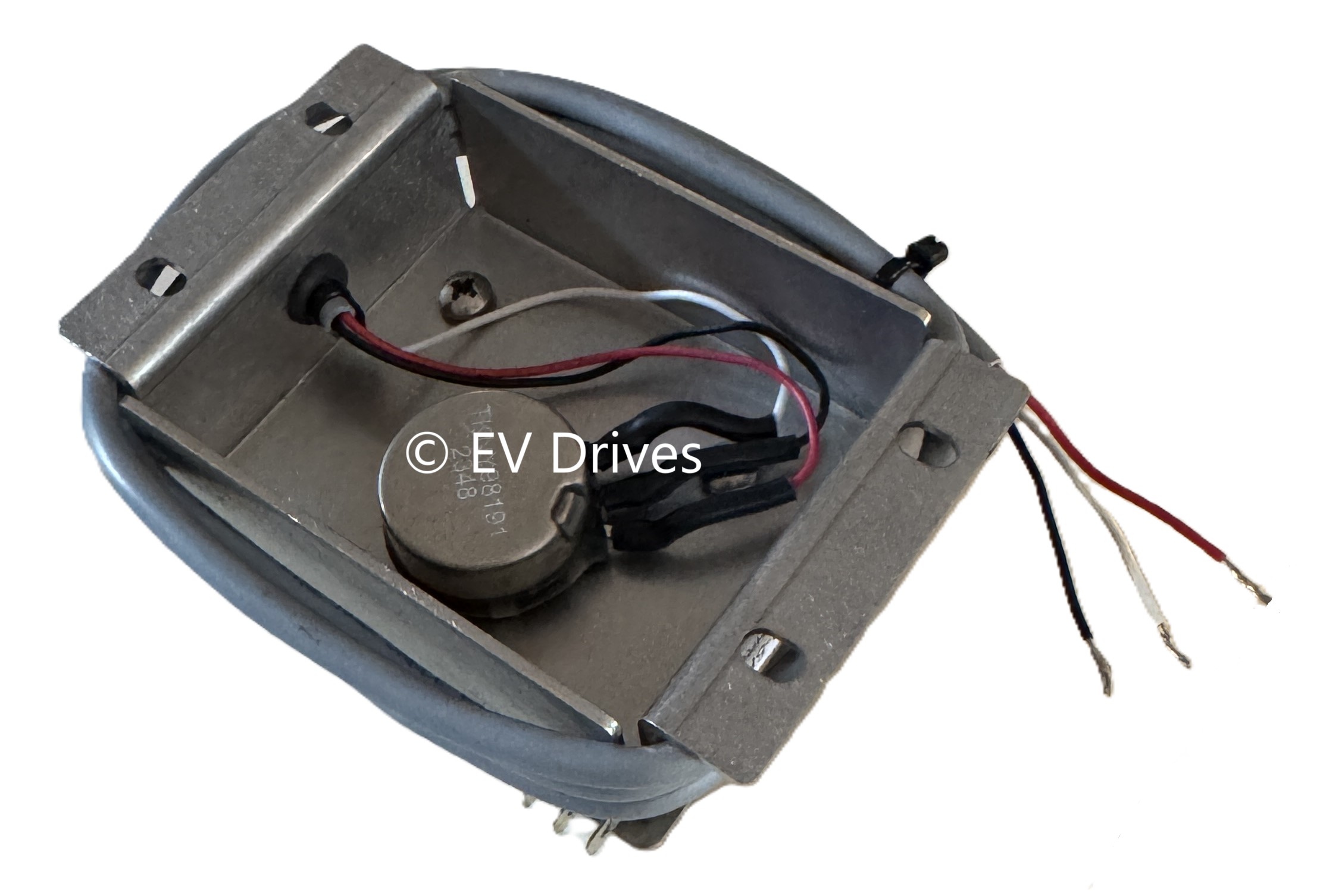

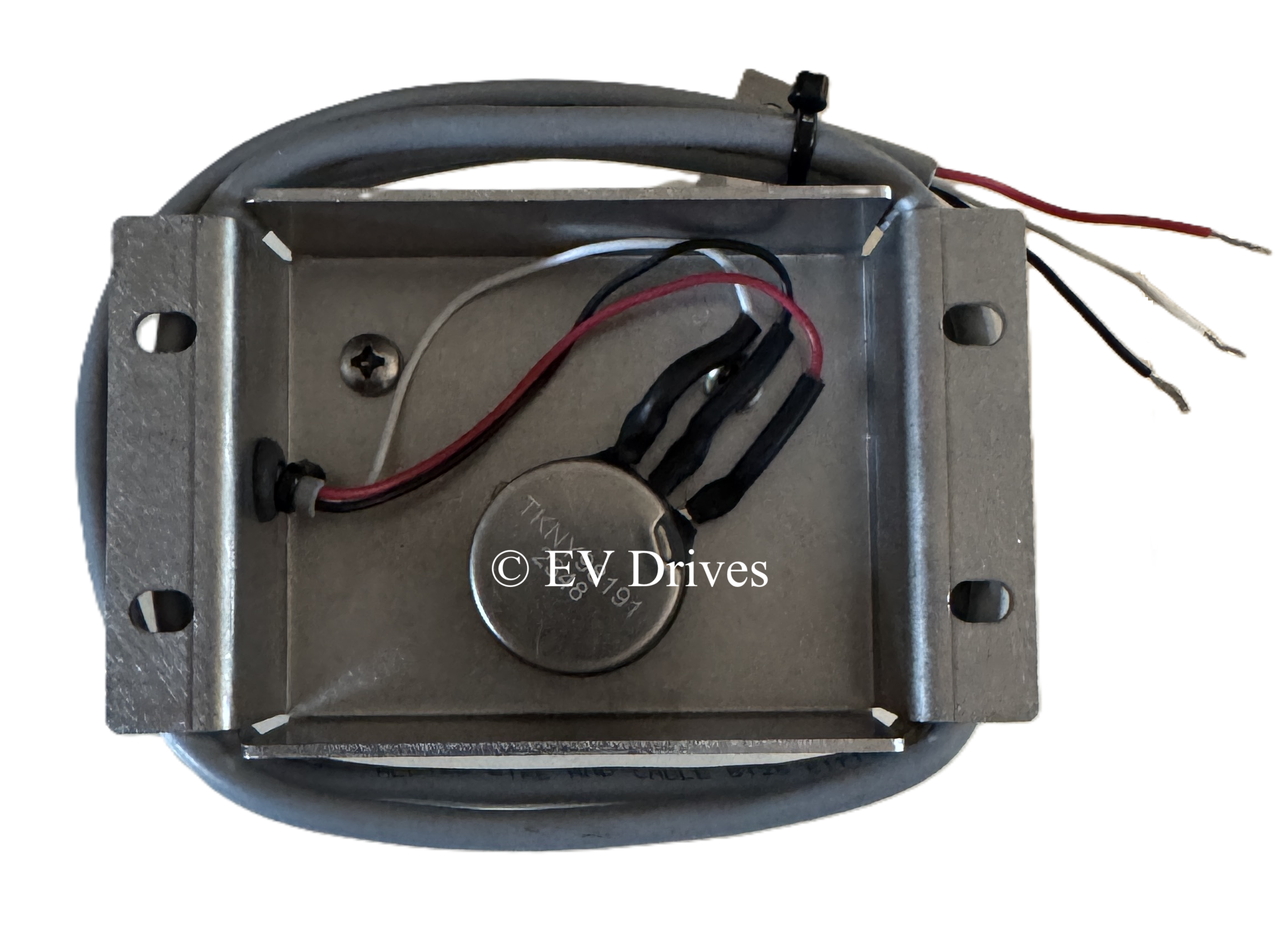

White = Low

Black = Wiper

Red = High
