Alltrax SR-48600 Series Motor Controller (SR48600)

Description

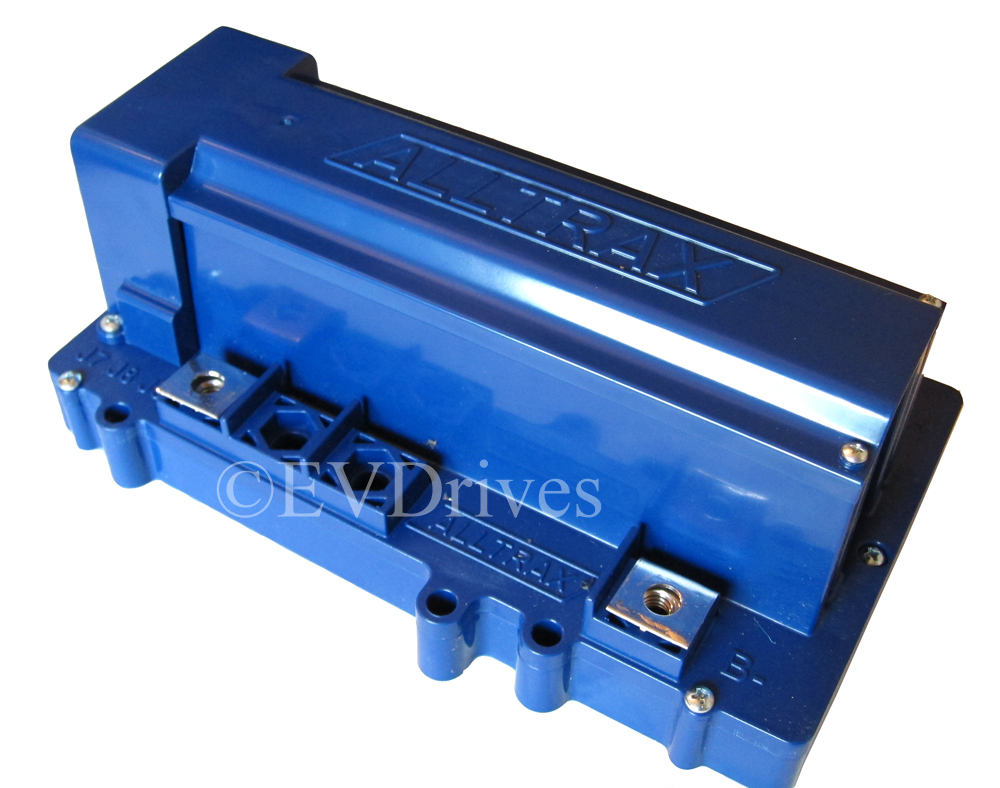

Alltrax SR-48600 Motor Controller

– Fan, Fuse & Mounting Hardware Included
– For Series and Permanent Magnet Motors

Features

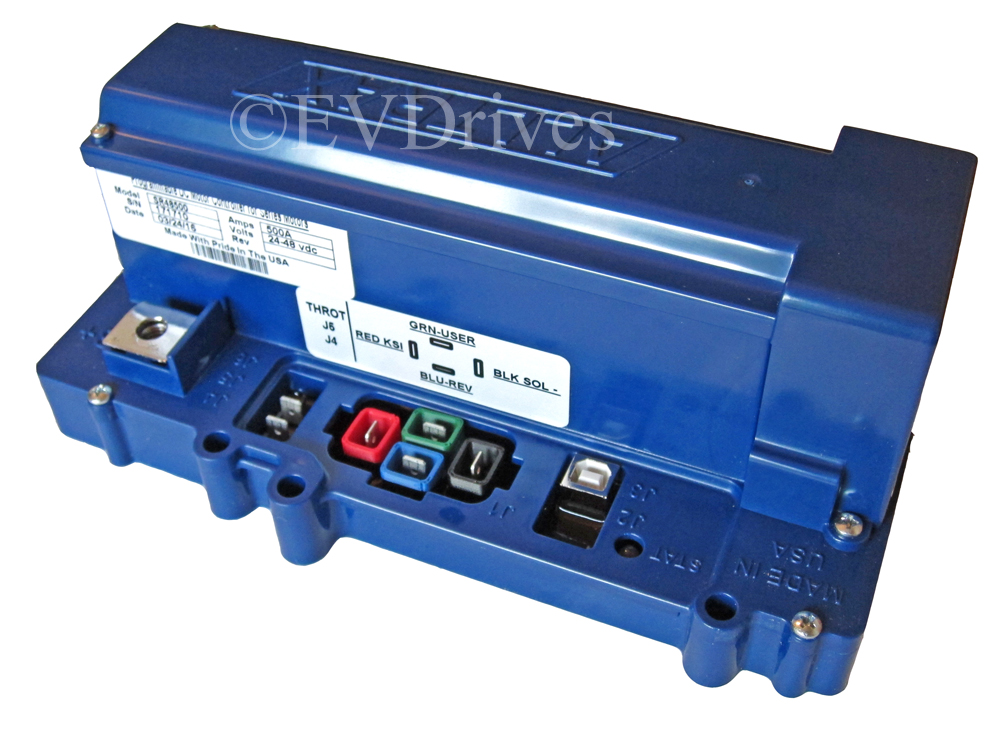

• Color coded terminals
• 12-48 Volts
• 600 Amps Peak
• 690 (Peak Amp Mode)
• Standard 4-spade
• Flexible USB programming
• Integrated heatsink mounts on any suitable surface
• Solenoid Control for Main DC Control
• Auto-throttle calibration for smooth operation

Specifications

• DC motor controller for series and permanent magnet motors
• ABS + PC510 flame resistant thermal plastic enclosure
• All copper heat sinks
• Sealed epoxy UL-94-VO / 5VA flame rating (best in industry)
• Adjustable undervoltage cutback 8-30 VDC
• Adjustable overvoltage shutdown 30-60 VDC
• Operating Frequency: 18k Hz
• Voltage drop @ 100amps: <0.18V
• Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
• Powered Up Standby Current <0.02A (20mA)
• Relay solenoid drive output current: 5amp peak, 1.0A Continuous

Throttle Input Options

• ITS (inductive, E-Z-GO)
• 0-1K Yamaha
• Resistive 0-5K ohm (+/-10%) 2-wire and 3-Wire
• Resistive 5K-0 ohm (+/-10%) Club Car
• 0-5Volt
• 6-10.5Volt (Taylor Dunn)
