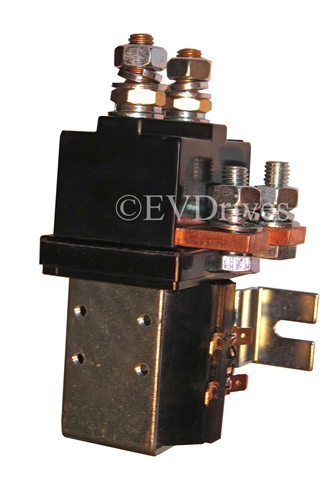

Albright SW201 Style Main Contactor 12V, 24V, 36V, 48V, 64V & 72V
$125.00
Description
Albright SW201 Style Main Contactor 12V, 24V, 36V, 48V, 64V & 72V
The SW201 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like. They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
- Rated Current: 400 Amps
- Voltage Coil: 24, 36V, 48V & 64V
- Single Pole, Single Throw, Normally Open
- Magnetic Blowouts
- Coil Power: 11 to 15W
- Rated Voltage of Contact Circuit: 6 to 80 Volts DC
- Dielectric Voltage Strength: 50Hz 1000V AC 1min
- Current Volt Drop of Main Contact at 100A: Not above 80mV
- Operating time, Contact Makes & Contact Brakes – >30ms
- Mechanical Life: 100 thousand times
- Electric Life: 20 thousand times
- Lug connector size: 3/8ths, 1/4″ spade for the coil
- Weight: 2.72 lbs
Related products
-

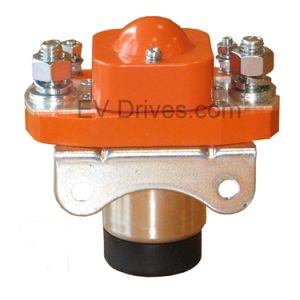

SOL-200 Main Contactor / Solenoid 24V, 36V & 48V
$60.00 Select options This product has multiple variants. The options may be chosen on the product page -
SW80-1268P Albright Single-acting Contactor 12V Intermittent Sealed IP66
$160.00 Add to cart -

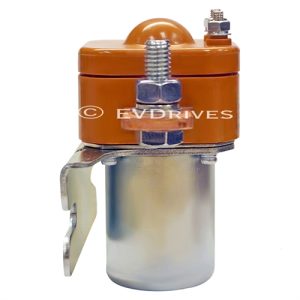

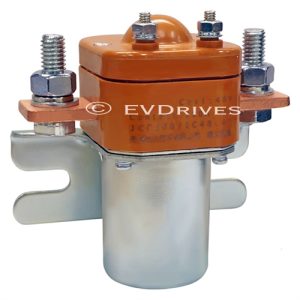

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V
$65.00 Select options This product has multiple variants. The options may be chosen on the product page -

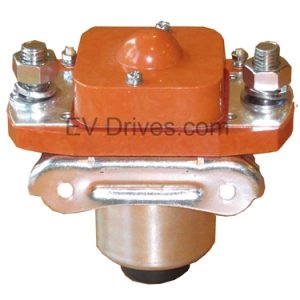

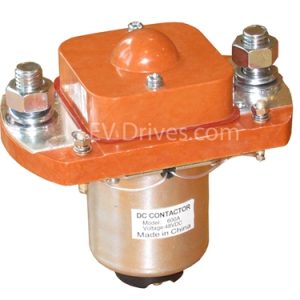

SOL600 Main Contactor 600 Amp 24V, 36V & 48V
