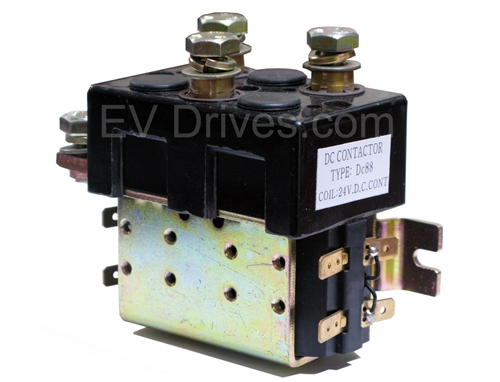

Albright DC88 Style Reversing Contactor 12V, 24V, 36V & 48V

Description

Albright DC88 Style Reversing Contactor 12V, 24V, 36V, 48V & 72V

The DC88 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like. They have double breaking contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Rated Current: 100 Amps
• Voltage Coil Options: 12, 24V, 36V, 48V & 72V
• Monoblock, Double Pole, Changeover Contacts
• Coil Power: 11 to 15W
• Rated Voltage of Contact Circuit: 6 to 80 Volts DC
• Dielectric Voltage Strength: 50Hz 1000V AC 1min
• Current Volt Drop of Main Contact at 100A: Not above 80mV
• Operating time, Contact Makes & Contact Brakes – >30ms
• Mechanical Life: 100 thousand times
• Electric Life: 20 thousand times
• Terminal lug connector size: 5/16ths
• Weight: 2.5 lbs
