Sevcon DC/DC Isolated Converter / Voltage Reducer 72 to 12V, 300 Watt – 622/11202 (5-Pin)
$225.00
15 in stock
Description

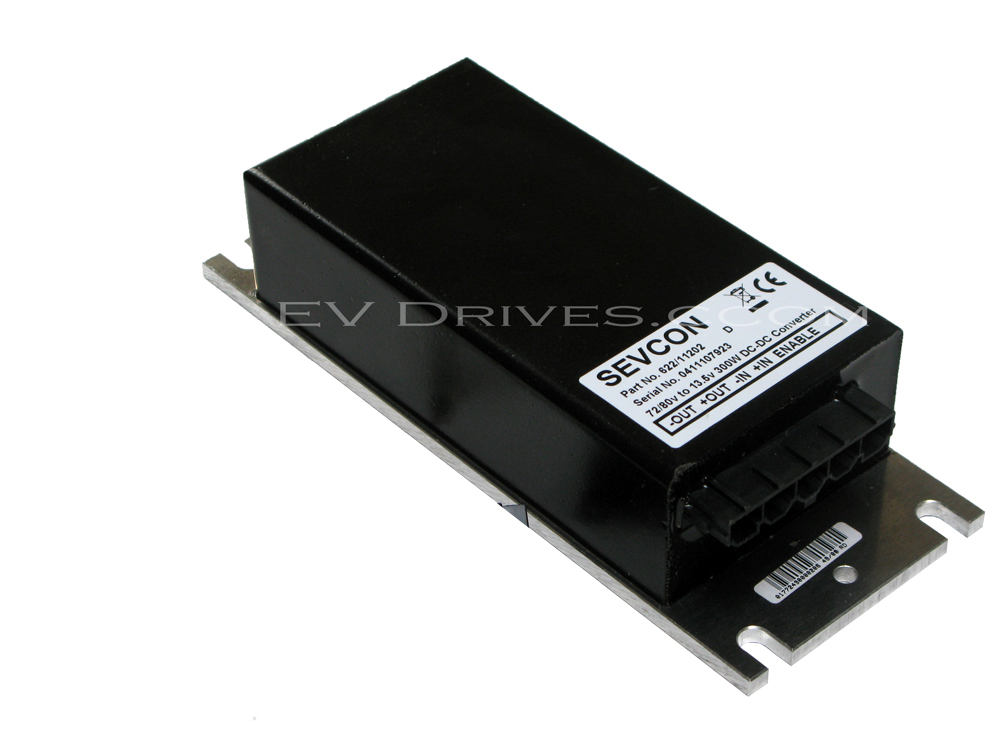

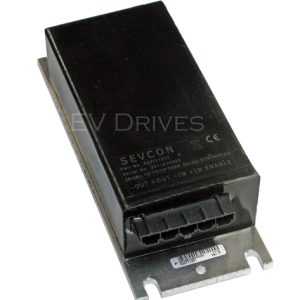

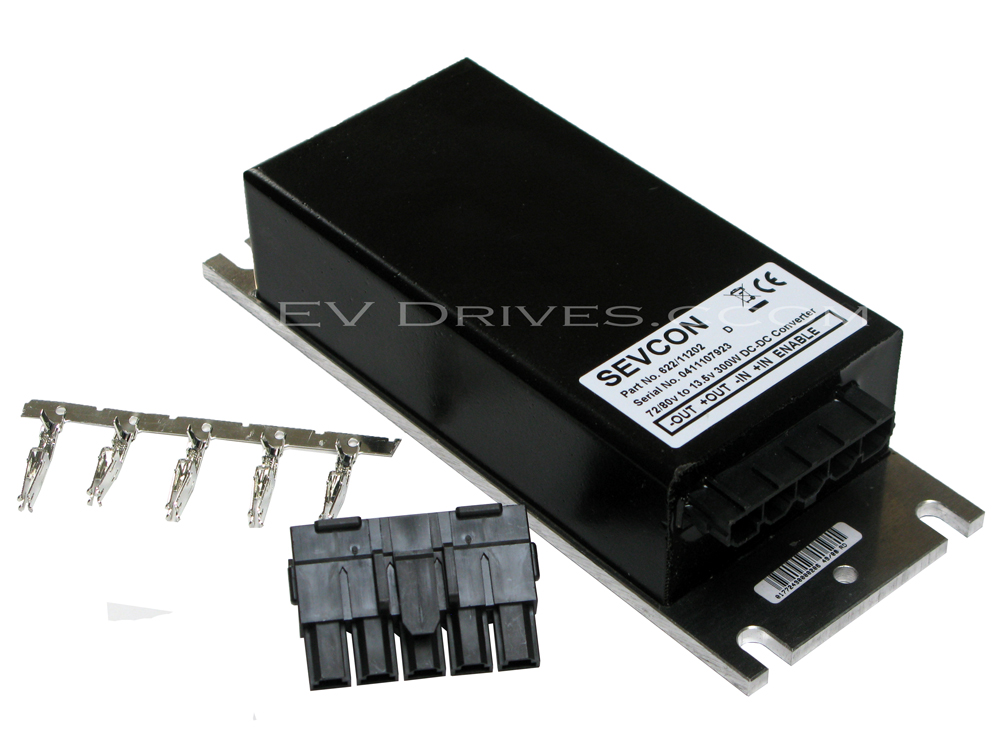

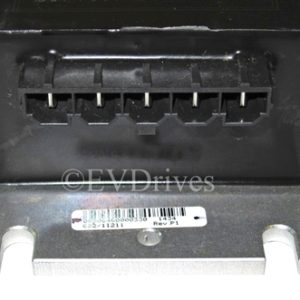

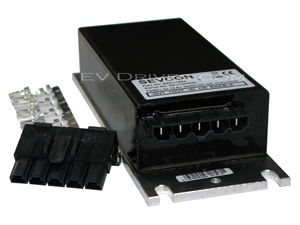

Sevcon DC/DC Isolated Converter / Voltage Reducer 72 to 12V – 622/11202 (5-Pin)
Part Number: 622/11202
300 Watt
Input Voltage nominal:
72/80V (57.6V min. @ 100V Max.)
Dimensions Standard:
7.5(L w/ base) x 2.98(W) x 1.70(H) inches-
5.6(L) x 2.87(W) x 1.69(H) inches
190(L) x 75.8(W) x 43.3(H) mm
Output Current:
The converter will deliver a load current of:
12 Volts @ 300 Watts, 24 Amps
Light load 13.5 Volts
Can be used to charge a battery
Operating Temperature: -25C to +55C
The Sevcon DC/DC Converters are suitable for all electric powered vehicles and are desig
