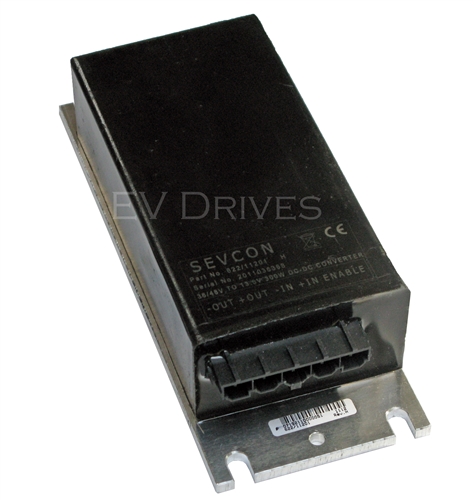

Sevcon DC/DC Isolated Converter / Voltage Reducer 48 to 12V, 300 Watt – 622/11201 (5-Pin)
$225.00
Description
Sevcon DC/DC Isolated Converter / Voltage Reducer 48 to 12V – 622/11201 (5-Pin)
Part Number: 622/11201
The 5-pin connector is an added option (not included).
Dimensions Standard:
7.5(L w/ base) x 2.98(W) x 1.70(H) inches
5.6(L) x 2.87(W) x 1.69(H) inches
190(L) x 75.8(W) x 43.3(H) mm
Input Voltage nominal:
48V (28.8V Min. @ 60V Max.)
Output Current:
The converter will deliver a load current of:
48V to 12V @ 300W, 20.4 amps
Light load 13.5 Volts
Can be used to charge a battery
Operating Temperature: -25C to +55C
The Sevcon DC/DC Converters are suitable for all electric powered vehicles and are designed to be fitted on-board the vehicle and connected permanently to the battery.
These converters deliver a stable isolated high power, low voltage DC supply for such accessories as lights, horns, and wipers. This eliminates inefficient batt
