JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V

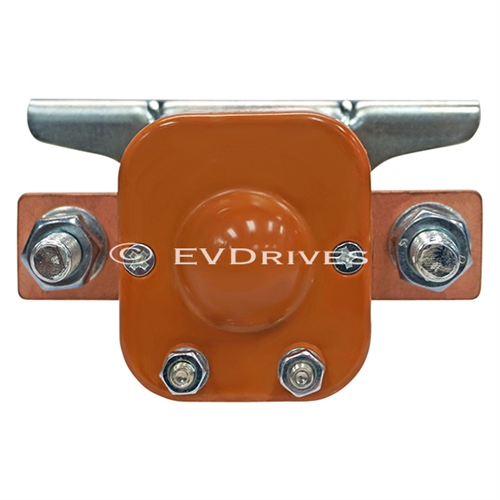

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V - Image 2

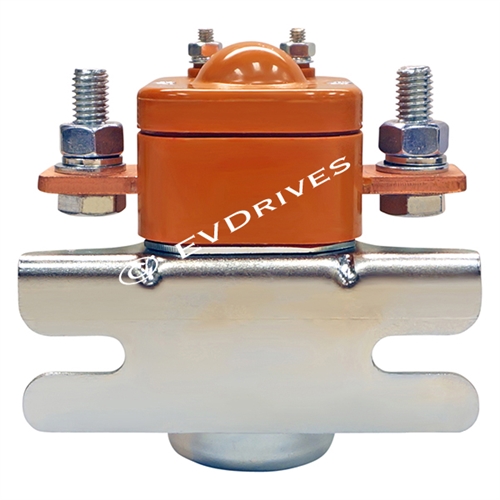

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V - Image 3

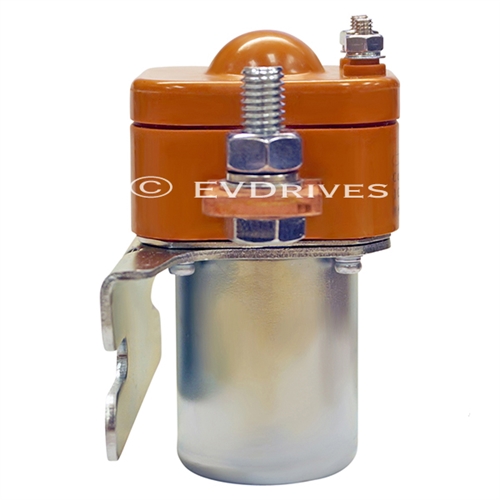

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V - Image 4
JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V - Image 5
JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V - Image 6

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V

$65.00

Suppression Diode Only ($10.00)
Pre-Charge Resistor Only ($12.00)
Diode & Resistor ($22.00)
SKU: SOL-JCC200 Category:

Description

Rated Current: 200A Continuous & 400A Peak

JCC-200 Main Solenoid, 200 Amp, 24V, 36V & 48V

  • Double-make or double-break contacts
  • These series are normally open
  • Current: 200 amps continuous
  • Contacts: Silver oxide
  • Terminals: 5/16″ main lug, #10 coil
  • Mounting: 2-up to 1/4″





Additional information

Weight 1.5 lbs
Voltage

, ,
