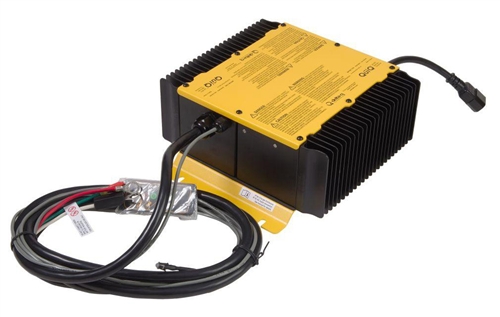

Delta-Q QuiQ On-Board 72V Battery Charger With Remote LED – 912-7200-D1

Description

The Delta-Q QuiQ charger is an advanced, high frequency charger that is small and light enough to be installed on-board the vehicle. The charger is completely sealed, is passively cooled without the use of fans, and can withstand temperature extremes, moisture and high vibration. The QuiQ charger is programmed with 10 charge profiles for both wet and sealed batteries. It can be used worldwide as it operates at both 120 volts and 230 volts. These are commonly used on golf cars, electric vehicles, floor scrubbers, and battery powered sweepers.

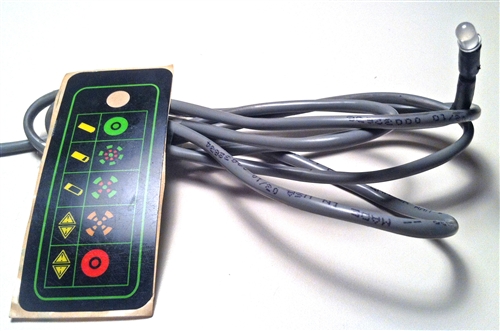

This model has a Remote LED and label with an 11 foot cord for mounting in your dash/gauge area.

• 72 Volts
• 12 Amps maximum
• For Lead acid (Wet/AGM/GEL)*
• AC input voltage – 120 VAC / 230 VAC at 45-65 Hz
• AC input connector US IEC320/C14 (requires country specific cord)
• IEC320/C14 Universal 8 Inch AC inlet plug

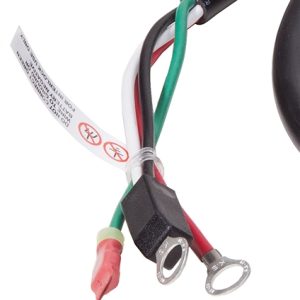

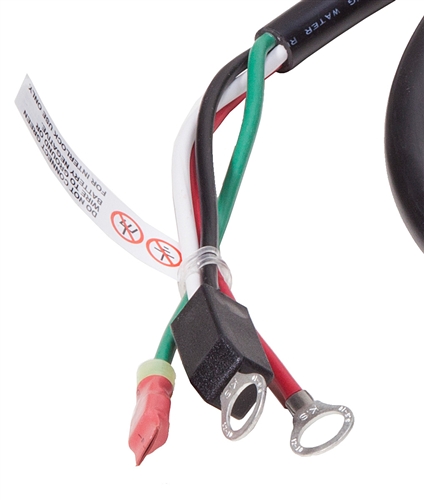

• 6 Foot DC 12AWG/4C output cable
• 10-segment LED for AC, 80%, 100%, Fault, Ammeter (6)
• Stores up to 10 user-Âselectable charge algorithms
• Dimensions: 11″ x 9.7″ x 4.3″
• Weight: 11 lbs
• Two Year Warranty

Battery Types: Choose your battery type from the drop-down list above.

GEM Cars: Although this has the same model number as the stock GEM charger, it is not identical. Some of the interlock functions on the car may not work with this charger. Although a bypass may be possible, we do not provide support for this nor do we have instructions available.

The charger comes pre-programmed with these profiles. If yours is different it will replace one of these.

*These are not recommend for Lithium batteries and we do not support or program for Lithium.

See accessories below for optional AC extension cord. The unit has a 8″ cord for on-board vehicles.
