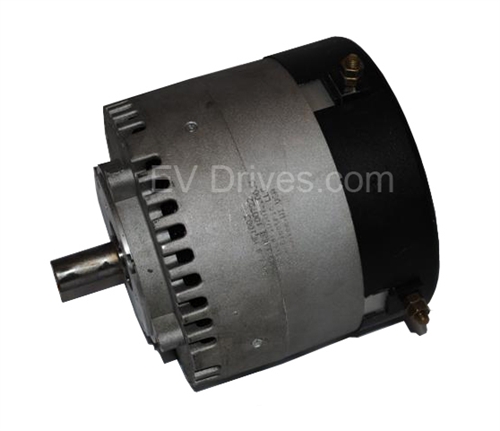

Motenergy ME-1003 (ME1909) Brush-Type Permanent Magnet DC Motor

$820.00
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
MOT-ME1003

The ME1003 (ME1909) is a same motor as the ME0709 but it has a double brush set to handle 200 amps continuous. This ME1003 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. For voltages from 12 to 72 VDC input and 200 amps continuous (400 amps for 30 seconds) @ 72 Volts. Designed for battery operated equipment. For more information, see the Performance Information section. This motor has similar performance to the Lynch, Lemco, and AGNI motors.

Power 11.5KW continuous,
20KW Peak for 30 seconds @ 72Volts
Voltage 12-72 Volts
Speed 3700 rpm at 72V Unloaded
Size 8" OD, 7.42" long (w/o shaft)
Shaft 7/8"x 1-5/8", 3/16" key
Timed for counter-clockwise rotation (can be changed to clockwise)
Weight 36 Lb.

We recommend that you use an Alltrax SR72400 Controller with this motor & a solenoid that is rated for 400 amp continuous like the SW200 with the appropriate diode & pre-charge resistor.
