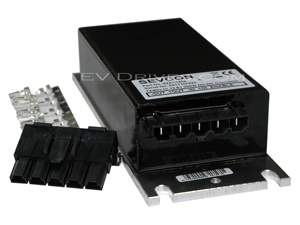

Sevcon DC/DC Isolated Converter / Voltage Reducer 72 to 12V - 622/11202 (5-Pin)
Part Number: 622/11202
300 Watt
Input Voltage nominal:
72/80V (57.6V min. @ 100V Max.)
Dimensions Standard:
7.5(L w/ base) x 2.98(W) x 1.70(H) inches-
5.6(L) x 2.87(W) x 1.69(H) inches
190(L) x 75.8(W) x 43.3(H) mm
Output Current:
The converter will deliver a load current of:
12 Volts @ 300 Watts, 24 Amps
Light load 13.5 Volts
Can be used to charge a battery
Operating Temperature: -25C to +55C
The Sevcon DC/DC Converters are suitable for all electric powered vehicles and are designed to be fitted on-board the vehicle and connected permanently to the battery.
These converters deliver a stable isolated high power, low voltage DC supply for such accessories as lights, horns, and wipers. This eliminates inefficient battery taps and fragile, expensive high voltage accessories.
Additional Features & Benefits
Custom, Compact Design
Custom designed for use with motor controllers, these compact, yet powerful converters can be connected in parallel for higher power requirements to perform reliably in industrial and commercial environments.
Isolated Output
Safer than direct battery connection, these converters provide an electrically isolated output for ancillary equipment.
Stable Voltage
Output is regulated to 13.5V and is maintained regardless of input voltage variations throughout the operating range.
Durable Reliability
Encapsulated to achieve a protection rating to IP67, these converters can be used with complete confidence in the most punishing environments.
 |
For Sevcon Data Sheets, see our FAQ and Documents. | |
