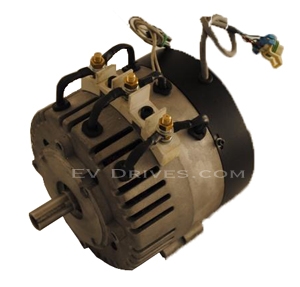

Motenergy ME1012 Brushless DC Permanent Magnet Motor

SKU:
MOT-ME1012
$590.00
(No reviews yet)
Current Stock:
This three-phase motor requires a motor controller (Sevcon Gen4 or Kelly controllers) that we currently do not offer.

  • Output Power of 10 KW Continuous, 24 KW Peak (at 72 volts)
  • Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 72 VDC. Continuous current of 125 amps AC (180 Amps DC into the motor control). This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and 3 Hall sensors at 120 degrees electrical timing. It has two stators with a rotor in the center.
  • This is a 4 pole motor (8 magnets).
  • The Phase to Phase winding resistance is 0.065 Ohms with 12 turns per phase.
  • The maximum recommended rotor speed is 5000 RPM.
  • Voltages from 0 to 72 VDC input to the control.
  • Torque constant of 0.12 Nm per Amp
  • The Inductance Phase to Phase is 0.05 Milli-Henry.
  • Armature Inertia is 45 Kg Cm Squared.
  • Continuous current of 125 Amps AC (180 Amps DC into the motor control).
  • Peak current of 420 Amps AC for 1 minute (600 Amps DC into the motor control).
  • Weight of 35 pounds.
  • Peak Stall Torque of 60 ft lb.
  • This is an Open Frame, Fan Cooled motor.
  • Timed for counter-clockwise rotation (can be changed to clockwise)
