Alltrax XCT-48400 Motor Controller For Fairplay Golf Carts

This is Alltrax's newest line of regen (shunt wound) separately excited motor controllers. It offers many advantages over their older DCX line.

Features

  • XCT48400 Motor Controller
  • For Fairplay Golf Carts
  • 400 Amps
  • 36-48 Volts
  • 0-5K Throttle
  • Auto Throttle Calibration
  • USB Programming With Free Software

Motors that are not supported:

  • XQ3-4T2
  • XQ-3.8
  • Please notify us of your motor model number at the time of order.

Specifications

  • DC motor controller for separately excited motors (not series)
  • ABS + PC510 flame resistant thermal plastic enclosure
  • All copper heat sinks
  • Sealed epoxy UL-94-VO / 5VA flame rating (best in industry)
  • Adjustable undervoltage cutback 16-30 VDC
  • Adjustable overvoltage shutdown 30-60 VDC
  • Operating Frequency: 18k Hz
  • Voltage drop @ 100amps: <.18V
  • Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
  • Powered Up Standby Current <.02A (20mA)
  • Relay solenoid drive output current: 5amp peak, 1.0A Continuous

Included

  • Fuse
  • Regen Diode
  • Operators Manual

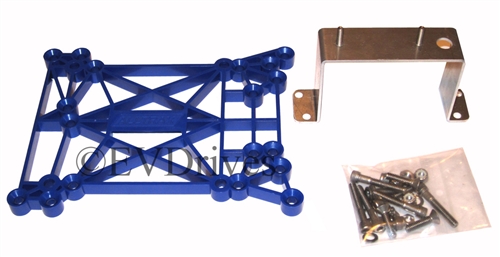

  • Flexi-Mount Adapter, Solenoid Mounting Bracket
  • Stainless Steel Hardware

Options

  • Cooling fan & encloser (increased performance)
  • Programming cable
Model 2 Mins
(Amps)
5 Mins
(Amps)
Continuous
(Amps)
XCT48300 300 200 125
XCT48400 400 250 140
XCT48500 500 400 250



PDF For Alltrax Data Sheets, see our FAQ and Documents.
